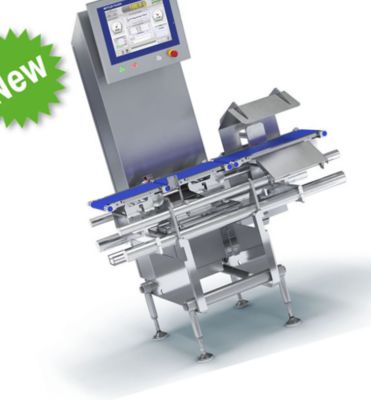

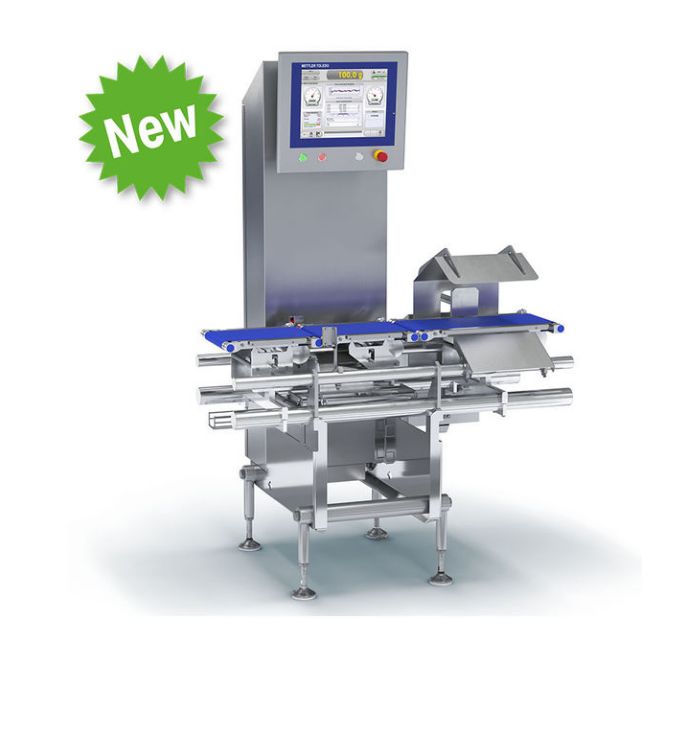

C35 WD Inspection System Checkweigher for Wet Harsh Environments

C35 WD Inspection System Checkweigher for Wet Harsh Environments

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: Mettler Toledo
หมายเลขรุ่น: ระบบตรวจสอบ C35 WD
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1 ชุด
ราคา: ต่อรองได้
รายละเอียดการบรรจุ: กล่องคารอน
เวลาการส่งมอบ: 10-30 วัน
สามารถในการผลิต: 2000 ชุดต่อเดือน
ติดต่อ
รายละเอียดสินค้า
ผลิตภัณฑ์: ระบบตรวจสอบ C35 WD การไหลของผลิตภัณฑ์: สายพานลำเลียง
แอปพลิเคชันการตรวจสอบ: การควบคุมน้ำหนัก อุตสาหกรรม: สารเคมีอาหารและเครื่องดื่มยาและเทคโนโลยีชีวภาพ
ความแม่นยำในการชั่งน้ำหนัก: จาก± 0.1 กรัม น้ำหนักผลิตภัณฑ์สูงสุด: 7 กก
ความเร็วสูงสุดของสาย: 90 m/นาที ปริมาณงานสูงสุด: 250 ppm
การเชื่อมต่อ: Ethernet TCP/IP FieldBus OPC UA ลักษณะผลิตภัณฑ์: แพ็คเกจขนาดใหญ่ขนาดกลาง, เปิด, ภาชนะกลม, แพ็คเกจขนาดเล็กขนาดกลาง, เปียก
กลุ่มอุตสาหกรรม: บียร์, ไวน์และเครื่องดื่มแอลกอฮอล์อื่น ๆ นม, เนื้อ & ไก่ & อาหารทะเล, น้ํามันและไขมัน, อาหารสัตว์เลี ประเภทบรรจุภัณฑ์: ขวด
เน้น:

C35 WD checkweigher for harsh environments

,

Mettler Toledo inspection system

,

wet environment checkweigher inspection system

C35 WD Inspection System Checkweigher for Wet Harsh Environments
Product Overview

The Mettler Toledo C35 WD Inspection System is a high-performance, combination quality control solution specifically engineered to thrive in the most demanding washdown environments. By integrating an advanced checkweigher and a highly sensitive metal detector into a single compact system, the C35 WD delivers comprehensive product inspection and protection in wet and harsh production areas.

Key Features
  • Precision and Versatility: Built for harsh environments to withstand high-pressure cleaning with very high precision at fast speeds
  • Highest Accuracy: MID-certified weighing precision helps comply with regulations and reduces product waste
  • Hygienic Design: Easy access for cleaning with sloped surfaces to prevent liquid retention
  • Resilient Construction: Entire IP69-rated system withstands high-pressure cleaning and caustic detergents
Technical Specifications
Attribute Value
Product Flow Conveyor
Weighing Accuracy from ±0.1 g
Max Product Weight 7 Kg
Max Line Speed 90 m/min
Max Throughput 250 ppm
IP Rating IP69
Max Product Width 400 mm
Weighing Technology EMFR
HMI 15" Touchscreen
Industry Applications

Chemical, Food & Beverage, Pharma & Biotech, including:

  • Beer, Wine and Other Alcoholic Beverages
  • Dairy, Meat & Poultry & Seafood
  • Oils and Fats, Pet Food and Animal Feed
  • Ready Meals, Snack Foods
  • Water and other Non-Alcoholic Beverages
Compatible Packaging Types

Bottle, Bundles, Glass, Trays, Unpackaged
